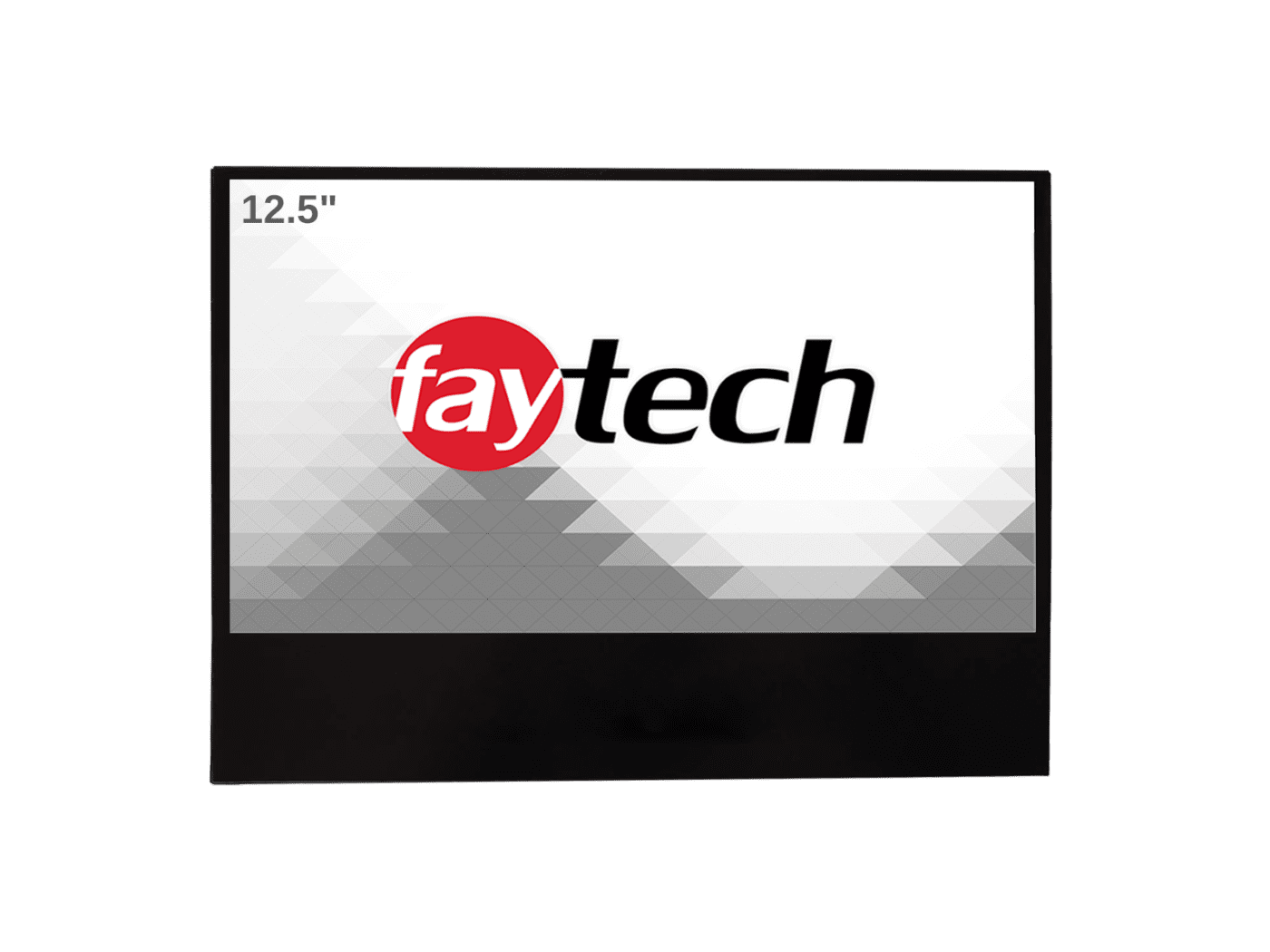

faytech_flat_front
12.5" faytech Flat Touch Monitor v1 - Image 4
12.5" faytech Flat Touch Monitor v1 - Image 5

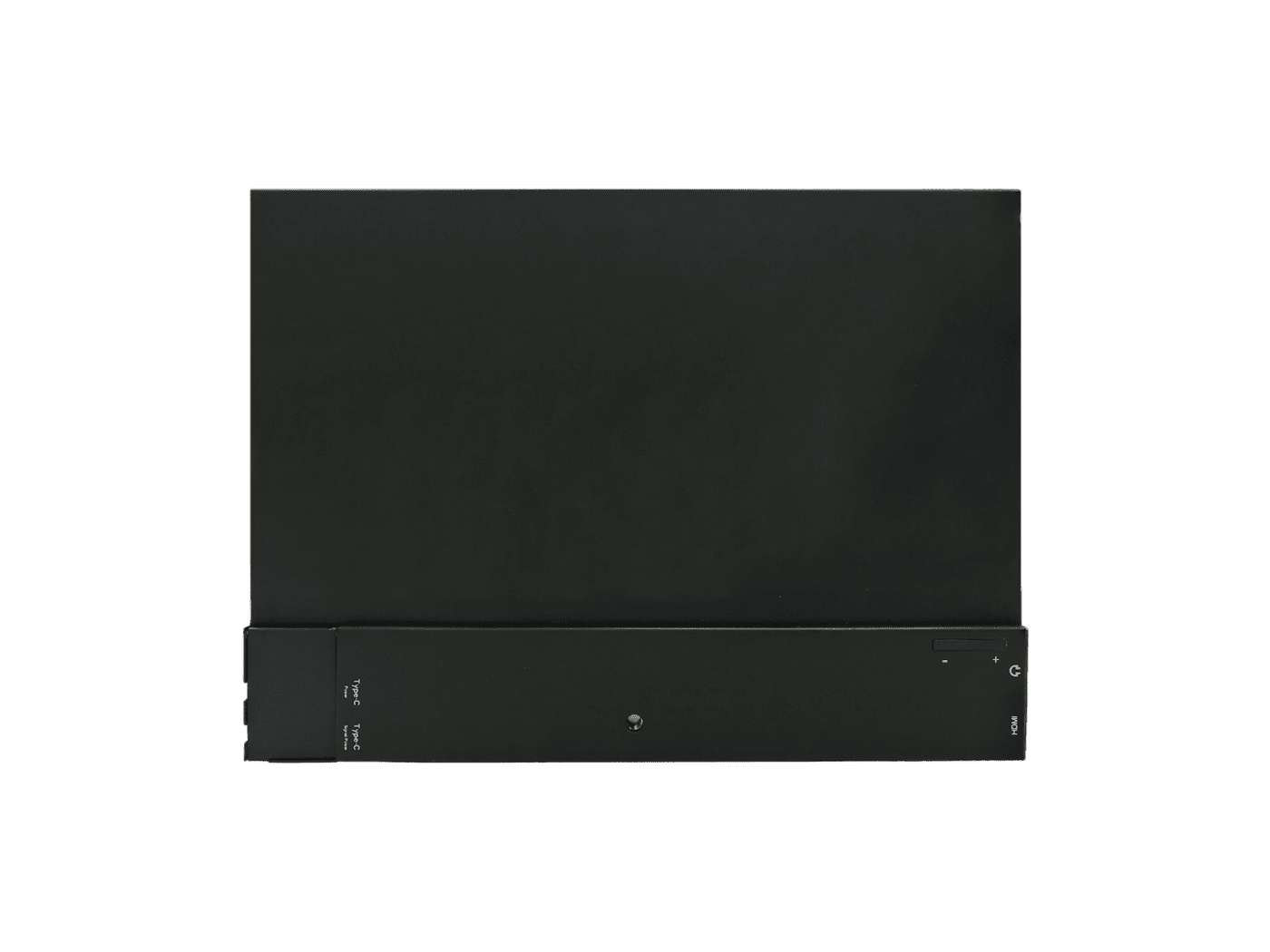

faytech_flat_back_angle_with_stand
IP40
ANTI-MICROBAL
CLEARBOND
DVI-D
HDMI
VGA
AUDIO
USB2
  1. faytech_flat_front_angle_with_stand
  2. faytech_flat_front_angleglare
  3. faytech_flat_front
  4. 12.5" faytech Flat Touch Monitor v1 - Image 4
  5. 12.5" faytech Flat Touch Monitor v1 - Image 5
  6. faytech_flat_back_angle_with_stand
  7. IP40
  8. ANTI-MICROBAL
  9. CLEARBOND
  10. DVI-D
  11. HDMI
  12. VGA
  13. AUDIO
  14. USB2

12.5″ faytech Flat Touch Monitor v1

Product Name: 12.5″ faytech Flat Touch Monitor v1
SKU: FT125FLATV1
IP Rating: IP40
Screen Diagonal: 12.5″ / 31.75 cm
Display Active Screen Size: 27.60×15.60 cm
Aspect Ratio: 16:9
Physical Resolution: 1920×1080
Maximum Showable Resolution: 1920×1200
Colors Displayed: 16.7M
Brightness: 300 cd/m2
Contrast: 700:1
Typical Reaction Time: Tr/Tf 14/11 ms
Visual Angle: 178/178 (°)
Backlight / Backlight Lifetime: LED / min. 15,000 hours
Touch Technology: Projected Capacitive 10-point Multitouch
Touch Panel Drivers: Windows; Linux; Mac; Android
Touch Life (Contacts): Unlimited
Surface Hardness: 7H
Surface Treatment: Anti-glare (chemical etched)
Warranty: 2 Years
Data Sheet Download:EN_FT125FLATV2

The FT125FLATV2 is an advanced touch panel display designed for diverse applications. It features a 12.5-inch screen with a 16:9 aspect ratio and a physical resolution of 1920×1080 pixels, capable of displaying up to 16.7M colors. The display provides a high brightness level of 300 cd/m2 and a contrast ratio of 700:1, ensuring excellent visibility in various lighting conditions. The device’s typical reaction time is 14/11 ms, and it offers a wide visual angle of 178 degrees both horizontally and vertically. With a minimum backlight lifetime of 15,000 hours and an IP40 rating, the product is built for durability. Its 10-point multitouch technology ensures a highly responsive user experience, and the panel is compatible with multiple operating systems including Windows, Linux, Mac, and Android. The surface treatment is anti-glare, thanks to chemical etching, and it offers a hardness level of 7H, ensuring durability and visibility in different operating conditions.

SKU: FT125FLATCategories: ,

This lightweight portable monitor, also known as the faytech flat, is the perfect solution for people that require an extra screen while doing their day-to-day activities. Whether you connect it to your mobile phone, tablet or laptop, it will be an easy and convenient way of extending (or duplicating) the screen of your smart device over USB Type-C or HDMI cable.

With a weight of only 450-gram, 12.5 inch in size and 10-point multi-touch, is this monitor a great tool for people on-the-go. Whether you are on a business trip, with the need to give presentations in different locations, a student constantly working on different projects or just a casual traveler that needs an extra screen, faytech flat is the solution for you.

Included with the device is a flexible stand, USB Type-C cable (1m) and protection case.

  • Full HD (1920 x 1080) LCD Panels
  • Perfect touch monitor for people on-the-go
  • 10-Finger-Multi Touch Capacitive Touch Panel
  • Optically bonded Touch Panel to LCD Panel
  • Thickness 5mm (screen) / 9.3mm (mainboard)
  • Screen brightness buttons on the back
  • Works with capacitive touch stylus (EETI touch)
  • Weight of around 450 grams
  • Plug and play ready

Additional information

Weight2.6455 lbs
